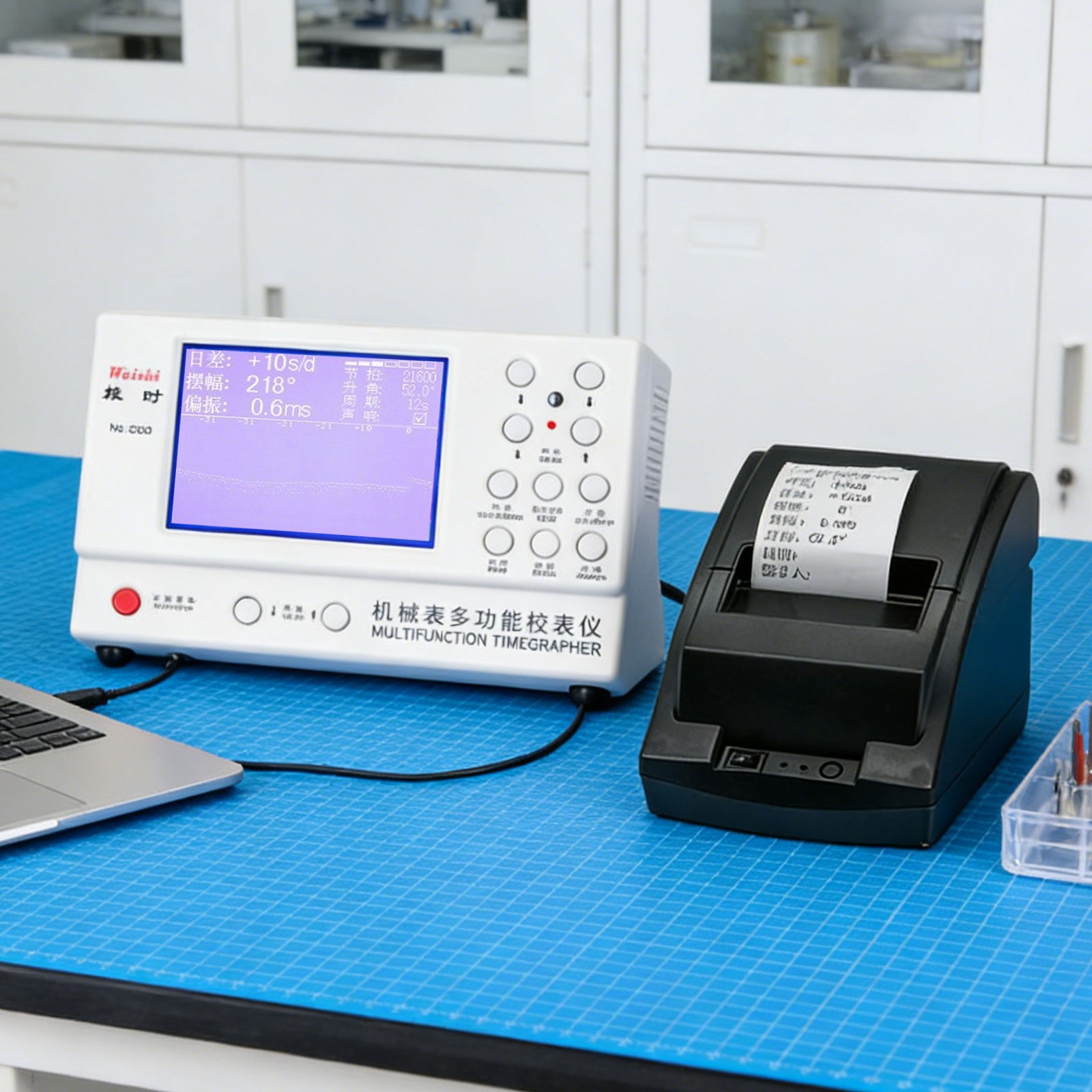

Weishi NO.3000 Mechanical Watch Timing Tester Multifunction Timegrapher+ Print70

Weishi NO.3000 Mechanical Watch Timing Tester Multifunction Timegrapher+ Printer

Description:

- NO.3000 is a precise mechanical watch testing instrument, it is used for multiple tests by watch manufacturers and watchmaking technicians.

-The frequency diagram of the watch can be displayed on the LCD screen. According to different watches, the instrument automatically adjusts the optimal signal level during the test.

-Automatically calculate the rate, amplitude, beat error and display them by data in real time.

-The instrument can automatically adjust the signal strength according to the different watch.

Specification:

- Item Type: NO.3000 Mechanical Watch Timing Test Tool

- Material: plastic, alloy

-Voltage: 100~240V

-Measurement: flow difference, amplitude, flapping error

-Flow difference measurement: the difference range is ± 999 s / day, accuracy 1.0 s / day

-Amplitude measurement (digital display in degrees): the resolution is 1 °, the measurement range: 100 ° to 360 °

-Measurement of the beat error (frequency error), digital display in milliseconds, the measurement range is 0 to 9.9 ms

-Test items: daily difference, swing amplitude, polarization;

-Measuring possibilities: Rate deviation, amplitude, beat error;

-Daily difference measurement: error measurement range is ±999 seconds/day, accuracy is 1.0 second/day;

-Rate deviation measurement: the range of deviation is ± 999 sec / day, precision 1.0 sec/day;

-Swing measurement: digital display, resolution is 1°, measurement range is 100°~360°;

-Amplitude measurement: Numerical display in degrees, resolution is1°, measuring range:100° to 360°;

-Polarization (frequency error) measurement: the value is displayed in milliseconds. The resolution is 0.1 milliseconds, and the measurement range is 0-9.9 milliseconds;

-Measuring for the beat error (frequency error): Numerical display in milliseconds;

-Resolution is 0.1 milliseconds; the measuring range is 0-9.9 ms;

-Measurement orientation: 1 to 6 orientations;

-Measuring position: 1 to 6 positions;

-Line Length: 320 points ;

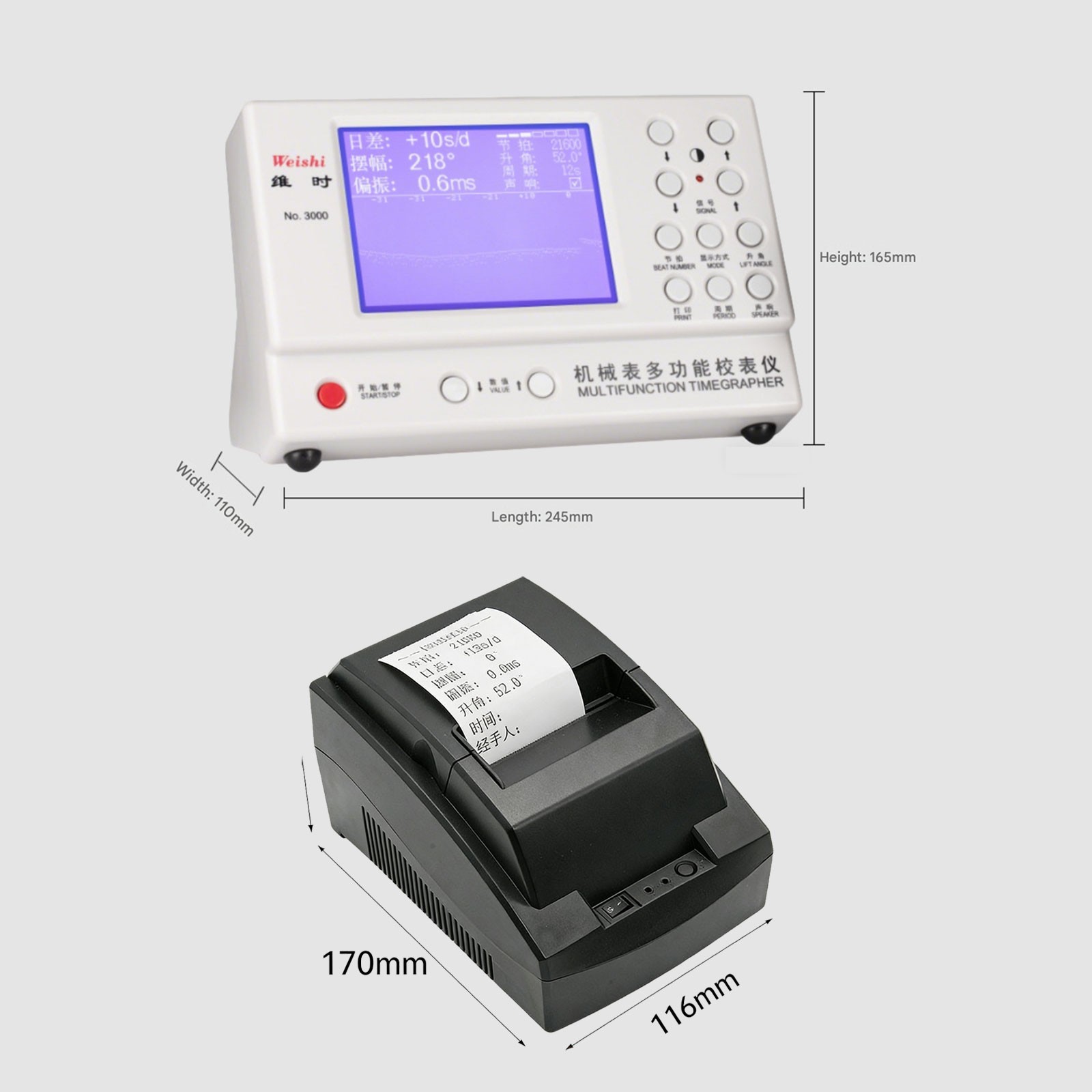

- Size: 245x165x110mm

- Screen size: 113x84mm

- Weight: 728g

NO.3000 Printer Parameter:

Material: ABS

Output voltage: 8.5V/3A

Input voltage: 110V-240V

Power: 25.5W

Print paper: 57.5±0.5mm

Size: 205x125x92mm

Weight: 740g

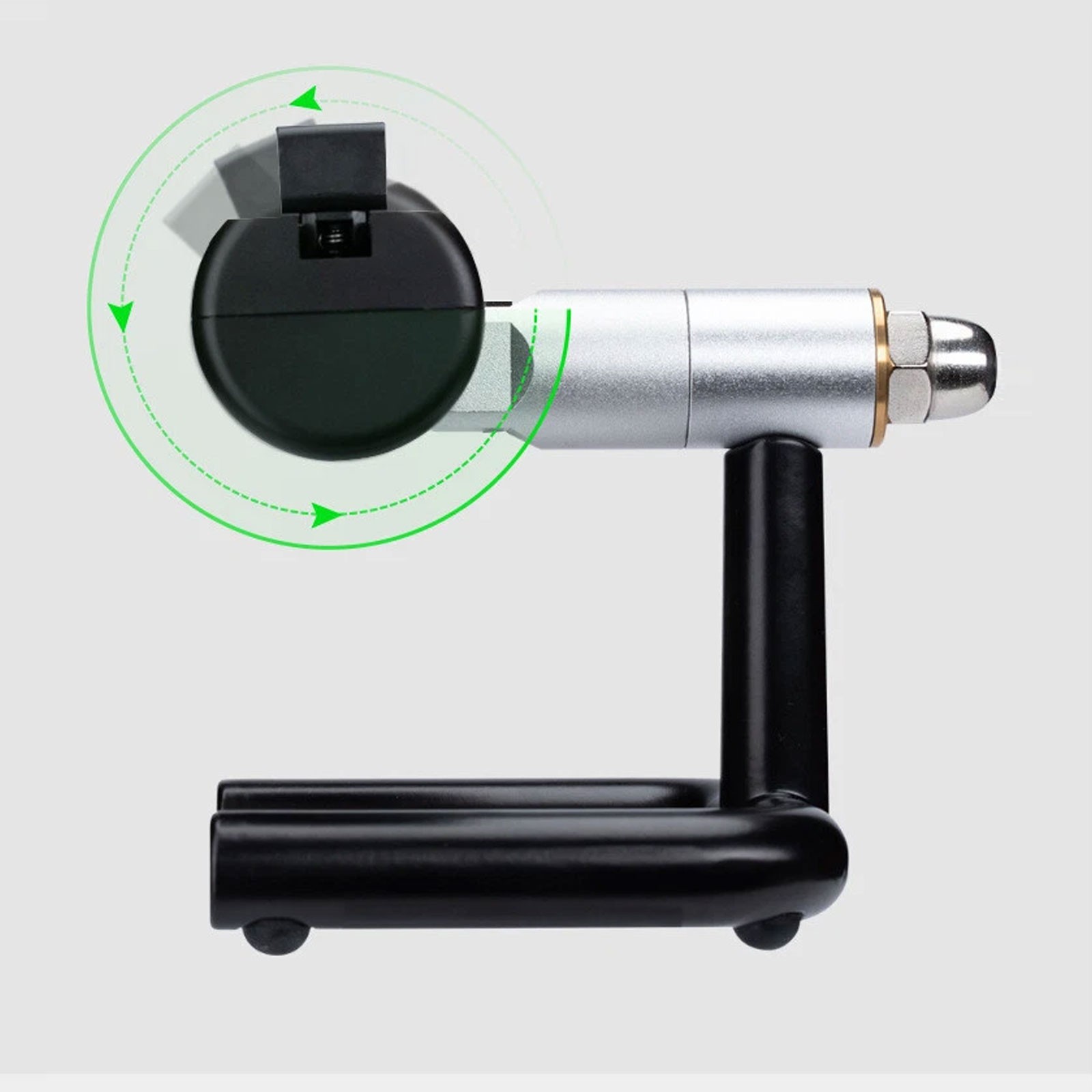

NO.3000 Rheomicrophone Parameter:

Size: 115x90x100mm

Material: Zinc alloy base, Aluminum sandblasting oxidation rotation shaft

Weight: 568g
